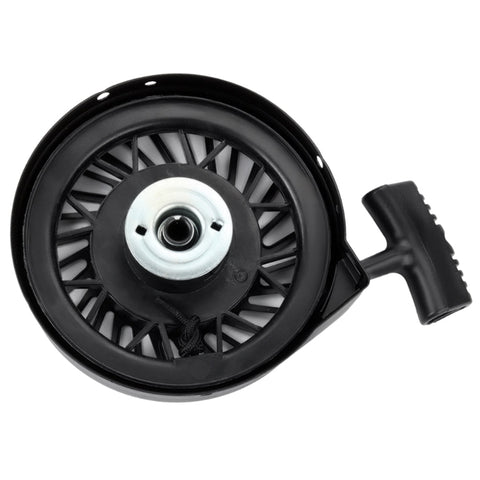

HIPA 590472 590739 Recoil Pull Starter Assembly for Tecumseh 590732A 590737 590763 590785 590787 590694 590707 LEV100 LEV115 LEV120 LEV195 Lawn Mower
- $19.98
-
- $19.98
- Unit price
- per
Free Shipping
Free US Shipping
Free US Local Shipping with ETA 3-5 Days - $3.99 for AK, HI & PR. Hassle-Free 30-Day Returns at HipaStore
590472 Recoil Starter Assembly for Tecumseh 590732A 590737 590739 590763 590785 590787 590694 590707
590732 recoil starter for Toro 38035 38051 38054 38056 38062 38063 38064 38072 38073 38605 Snowthrower
Direct Replacement for a Proper fit and Easy Installation!
Pull rope length: 3 meters, to double knott the rope could avoid from slipping off.
WIDE COMPATIBILITY Used on Tecumseh LEV100 LEV150 LEV115 LEV120 LEV80 LV148 LV195 OV195 OVRM105 OVRM120 OVRM60 OVRM65 TVS100 TVS115 TVS120 TVS600 TVS90 VLV126 VLV60 VLV65 VLV66 ECV100 Engine
590732 recoil starter for Toro 38035 38051 38054 38056 38062 38063 38064 38072 38073 38605 Snowthrower
Direct Replacement for a Proper fit and Easy Installation!
Pull rope length: 3 meters, to double knott the rope could avoid from slipping off.
WIDE COMPATIBILITY Used on Tecumseh LEV100 LEV150 LEV115 LEV120 LEV80 LV148 LV195 OV195 OVRM105 OVRM120 OVRM60 OVRM65 TVS100 TVS115 TVS120 TVS600 TVS90 VLV126 VLV60 VLV65 VLV66 ECV100 Engine
Couldn't load pickup availability
SKU:
03-3005
Availability:
In Stock
Model Fit Guide
Recoil Pull Starter Assembly Replaces # 590702 590739 590637
Fitment:
Tecumseh
AV600 LEV80 LEV100 LEV115 LEV120 LEV150 LV195EA OV195EA OV195XA ORVM60 Engine
OVRM65 OVRM105 OVRM120 TVS90 TVS100 TVS115 TVS120 TVS600 ULT60 VLV60 VLV65 VLV66 VLV126 Engine
Tecumseh 1421.0056 (14210056, tc1421.0056, tc14210056)
Tecumseh 1421.0076 (14210076, tc1421.0076, tc14210076)
Tecumseh 1421.0090 (14210090, tc1421.0090, tc14210090)
Tecumseh 1421.0094 (14210094, tc1421.0094, tc14210094)
Tecumseh 1421.0095 (14210095, tc1421.0095, tc14210095)
Tecumseh 1421.0100 (14210100, tc1421.0100, tc14210100)
Toro
20008 20009 20007 20016 20005 20012 20016 20013 20012 20017 20014 20653 20071A 20072 20072A Lawn Mower
20073 20073A 20069 20071 20094 20096 20075 20074A 20074 20098 20076A 20019 20018 20070 20079 Lawn Mower
Craftsman
143026708 Engine 143986500 143996702 4-Cycle Engine 143976250 Small Engine
917376810 917372780 917372832 917372854 917373840 917376282 Lawn Mower
917376283 917376301 917376931 917376331 917376341 917376440 917376941 Lawn Mower
Lawn Boy
10671 10683 10684 10684C 10685 10686 10686C 10687 10995 10997 Insight Lawnmower
10200 10202 10210 10212 10236 10249 10302 10305 10307 10309 10310 10311 10313 10321 10335 10356 10357 10358 10359C Silver Series Lawnmower
Fits For
Lawn Boy
10200 (7900001-7999999)(1997) Silver Series Lawnmower
10202 (7900001-7999999)(1997) Silver Series Lawnmower
10202 (6900001-6999999)(1996) Silver Series Lawnmower
10202 (5900001-5999999)(1995) Silver Series Lawnmower
10202 (4900001-4999999)(1994) Silver Series Lawnmower
10210 (5900001-5999999)(1995) Silver Series Lawnmower
10210 (4900001-4999999)(1994) Silver Series Lawnmower
10212 (7900001-7999999)(1997) Silver Series Lawnmower
10212 (6900001-6999999)(1996) Silver Series Lawnmower
10236 (7900001-7999999)(1997) Silver Series Lawnmower
10249 (8900001-8999999)(1998) Silver Series Lawnmower
10302 (7900001-7999999)(1997) Silver Series Lawnmower
10302 (6900001-6999999)(1996) Silver Series Lawnmower
10302 (5900001-5999999)(1995) Silver Series Lawnmower
10302 (4900001-4999999)(1994) Silver Series Lawnmower
10305 (7900001-7999999)(1997) Silver Series Lawnmower
10305 (6900001-6999999)(1996) Silver Series Lawnmower
10305 (5900001-5999999)(1995) Silver Series Lawnmower
10307 (7900001-7999999)(1997) Silver Series Lawnmower
10309 (7900001-7999999)(1997) Silver Series Lawnmower
10310 (6900001-6999999)(1996) Silver Series Lawnmower
10310 (5900001-5999999)(1995) Silver Series Lawnmower
10310 (4900001-4999999)(1994) Silver Series Lawnmower
10311 (4900001-4999999)(1994) Silver Series Lawnmower
10313 (8900001-8999999)(1998) Silver Series Lawnmower
10313 (7900001-7999999)(1997) Silver Series Lawnmower
10313 (6900001-6999999)(1996) Silver Series Lawnmower
10313 (5900001-5999999)(1995) Silver Series Lawnmower
10321 (8900001-8999999)(1998) Silver Series Lawnmower
10321 (7900001-7999999)(1997) Silver Series Lawnmower
10335 (200000001-200999999)(2000) Silver Series Lawnmower
10335 (9900001-9999999)(1999) Silver Series Lawnmower
10356 (240000001-240999999)(2004) Silver Series Lawnmower
10356 (230000001-230999999)(2003) Silver Series Lawnmower
10357 (230000001-230999999)(2003) Silver Series Lawnmower
10358 (230000001-230999999)(2003) Silver Series Lawnmower
10359C (230000001-230999999)(2003) Silver Series Lawnmower
10671 (250000001-250999999)(2005) Insight Lawn Mower
10683 (250000001-250999999)(2005) Insight Lawn Mower
10684 (250000001-250999999)(2005) Insight Lawn Mower
10684C (250000001-250999999)(2005) Insight Lawn Mower
10685 (250000001-250999999)(2005) Insight Lawn Mower
10686 (270000001-270999999)(2007) Insight Lawn Mower
10686 (260000001-260999999)(2006) Insight Lawn Mower
10686 (250000001-250999999)(2005) Insight Lawn Mower
10686C (260000001-260999999)(2006) Insight Lawn Mower
10687 (260000001-260999999)(2006) Insight Lawn Mower
10995 (270000001-270999999)(2007) Insight Gold Lawn Mower
10995 (260000001-260999999)(2006) Insight Gold Lawn Mower
10997 (270000001-270999999)(2007) Insight Gold Lawn Mower
10997 (260000001-260999999)(2006) Insight Gold Lawn Mower
Shipping
Free Shipping on US Orders
How long does delivery take?
3-7 business days.
What countries do you ship to?
US , CA and Mexico, only US with free shipping.
While we need to charge $4.99 shipping fee for the following US areas:
1. Alaska
2. Hawaii
3. Puerto Rico
Thank you for your understanding.
Returns Policy
1 Year Warranty
Hipa guarantees any products will be defect-free (material and workmanship) under normal use and service for ONE YEAR. For any manufacturing quality problems, we will offer you a replacement within one year of receipt of your original purchase.
30-Day Returns Policy
We have a 30-day returns policy, which means you have 30 days after receiving your item to request a return. If you need to return a product purchased online from Hipastore.com, here is what you need to know:
Items shipped from Hipastore.com can be returned within 30 days of receipt of shipment for a full refund. (Original shipping fees are not refundable.)
To start a return, you can contact us at service@hipastore.com. If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. You can always contact us for any return questions at service@hipastore.com.
1."What is a recoil start?"
A:"A recoil start is a manual starting mechanism commonly found on small engines, such as those used in lawnmowers, chainsaws, and generators. It consists of a pull cord attached to a recoil spring, which is wound up inside a housing.
How it works:
Pulling the Cord: To start the engine, you pull the recoil starter cord, which causes the recoil spring to unwind. Turning the Engine Over: As the cord is pulled, it rotates the engine's flywheel, which in turn starts the engine's internal components moving. Ignition: Once the engine has been turned over sufficiently, the ignition system sparks, starting the engine."
A:"A recoil start is a manual starting mechanism commonly found on small engines, such as those used in lawnmowers, chainsaws, and generators. It consists of a pull cord attached to a recoil spring, which is wound up inside a housing.
How it works:
Pulling the Cord: To start the engine, you pull the recoil starter cord, which causes the recoil spring to unwind. Turning the Engine Over: As the cord is pulled, it rotates the engine's flywheel, which in turn starts the engine's internal components moving. Ignition: Once the engine has been turned over sufficiently, the ignition system sparks, starting the engine."
2."How to replace a recoil starter?"
A:"Before you begin the replacement, you need to make sure the engine has cooled and remove the wire and boot from the spark plug to prevent the engine from accidentally starting.
Step 1: Loosen the starter rope retainer wing nut, so you can release the rope from the retainer and allow it to rewind onto the starter pulley.
Step 2: Now use the 10 millimeter socket to unthread the three mounting nuts securing the recoil starter. With the nuts removed, you can lift the old starter off to install the new recoil starter.
Step 3: Align the new recoil starter on the mounting posts. So the starter rope and handle faces the right rear corner of the engine cover.
Step 4: Thread and tighten the mounting nuts.
with the new starter secured, depress the bale arm and gently extend the starter rope. Position the starter rope handle in the retainer then tighten the wing nut. Reattach the wire and boot to the spark plug. Now your engine should be ready for use."
3."How to replace a recoil spring?"
A:"Tools Needed:
Replacement rewind spring
Screwdrivers
Pliers
Safety gloves
Steps:
1.Turn off the generator and disconnect the spark plug wire.
2.Remove recoil starter housing: Unscrew the bolts holding the starter assembly.
3.Take out the pull cord and starter pulley: Untie the cord, then remove the pulley and any retaining bolts.
4.Remove old rewind spring: Carefully take out the old spring, noting its position for reinstallation.
5.Install new rewind spring: Coil the new spring in the housing in the correct direction (usually counterclockwise) and secure it.
6.Reassemble: Reattach the starter pulley and pull cord, then secure the recoil starter housing back on the generator.
7.Test the recoil starter: Pull the cord to ensure it retracts smoothly, then reconnect the spark plug wire.This should get your generator's recoil starter working again."
4."How to repair a pull cord?"
A:"Here are the detailed steps:
Step 1: Remove the bolts that are holding the cover.
Step 2: Remove the old rope on the cover and the handle. You may need a flat screwdriver to reach into the handle to pop it off and then you can pull the rope out.
Step 3: You have to match up the old rope to a new rope. A small tip is to melt both the ends of the new rope to make the ends nice and smooth. Because the melt rope can prevent itself from fraying.
Step 4: Now, grab your new rope and make a knot at the end and pull on it to make sure that it is really tight.
Step 5: What you need to do is grab the end of the rope without the knot and grab the recoil assembly. Now you have to insert the rope through it and pull on the rope until the knot gets right up to the spool.
Step 6: And then, insert the end of the rope without the knot through the hole in the recoil.
Step 7: Now what you need is the handle, just insert the rope through the handle and make another knot as you did earlier. You just need to insert the knot in the hole on the handle cover.
Step 8: Finally, you just need to tighten up the spring on the spool so that the rope will go back in. Grab the recoil in your hands, turn it four turns counterclockwise, and make sure you turn the spool when you do this and count your turns on where the rope exits the coil. You have to hold the rope to make sure it is in the spool and then you can let it go back in the recoil nice and easy.
Before you install your recoil, it is a good idea to spray it with some liquid wrench to lubricate all the moving parts in the recoil.
Step 9: Reinstall the cover and put up the bolts.
After you’ve finished all the steps above, it is better to try to start your engine up outside to check if the pull cord can work properly."
