Starter Solenoid Model Fit Guide

•
  Fit Other Husqvarna Produced Brands that Require This Part Number (AYP, Craftsman, John Deere, Cub Cudet, Jonsered, McCulloch, Poulan, Poulan Pro, RedMax, Sears, Weed Eater)

  John Deere L100 L105 L108 L110 L111 L118 L120 L130 LA100 LA105 LA110 LA115 LA120 LA125 LA130 LA135 LA140 LA145 LA150 LA155 LA165 LA175 X110 X120 X140 Z225 Z425 Z445 Z645 Lawn Mower Tractor

  Cub Cudet CC760ES GT1054 GT1554 GT2000 GT2100 GTX1054 GTX2100 I1042 I1046 I1050 LGT1050 LGT1054 LGTX1050 LT1040 LT1042 LT1045 LT1046 LT1050 LTX1040 LTX1042 LTX1045 LTX1046 Lawn Mower Tractor

• Craftsman YS4500 LT2000 YT3000 Lawn Mower Tractor

• Fit for Craftsman 917276827 917287220 917287140 917288520 917287240 917287461 917287011 917289240 917276600 917288480 917288260 917289030 917.2887 917.276865 917288071 917276181 917288522 917287010 917289740 917.289081 917276703 917286460 917289031 917288032 917288517 917287121 917288513 917288220 917250220 917275351 917254320 Riding Mower.


• Used On Craftsman 917276813 917288612 917276863 917253120 917253151 917253160 917253300 917253310 917253320 917253321 917253330 917253340 917253350 917253360 917253361 917253750 917253751 917253800 917254090 917254091 917254110 917254120 917254121 917254150 917254160 917254161 917254170 917254180 917254181 917254182 917254200 917254210 917254211 Lawn Tractor.


• 192507 Starter Solenoid Fits Husqvarna 2042 LS, 2246 LS, 2346 XLS, 2348 LS, 2748 GLS, 2754 GLS, GTH 2448 T, GTH 2454 T, GTH 26 K 54, GTH 26 K 54 T, GTH 2648, GTH 2654 T, LGT 2654, LOGTH 2448 T, LOYTH 20 F 42 T, LT 16542, LTH 1538, LT 1538, PB 19546 LT, YT 1942 T, YTH 1542 XP, YTH 1542 XPT, YTH 1848 XPT, YTH 18542, YTH 20 B 42 T, YTH 20 F 42 T, YTH 20 K 46, YTH 2042, YTH 2146 XP, YTH 2242 T, YTH 2246, YTH 2348, YTH 2448 T, YTH 2454, YTH 2454 T, LGT2554, YTA19K42 Ride Mower Lawn Tractor.


• 582042802 Starter Solenoid Fits Poulan PB10538LT PB14538LT PB145G38 PB145G42 PB15542LT PB155G42 PB17542LT PB175A42LT PB175A46 PB175G42 PB185A42 PB185A46LT PB18VA46 PB19542LT PB19546LT PB195A46LT PB195H42LT PB20A42LT PB20A46 PB20A46LT PB20A46YT PB20H42LT PB20H42YT PB20VA46 PB20VA48 PB22H42YT PB22H46YT PB22VA54 PB23H46YT PB23H48LGT PB23H48YT PB24VA54 PB26H54YT PBGT2654 PBGT26H54 PBLGT2654 PBLGT26H54 PO10530LT PO10538LT PO12530LT PO12538LT PO12597RB PO14538LT Lawn Mower Tractor;



Starter Solenoid Replace OEM

MPN: 582042801, 582042802, 532192507, 862-1241-211-12, 21546294, 5321925-07, 192507, 14222, 435-435, 705055, 725-06153A, 725-06153, 762-1261-211-50, 762-1261-211-51.

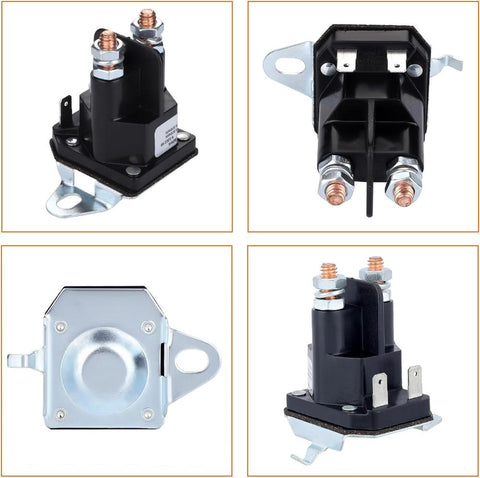

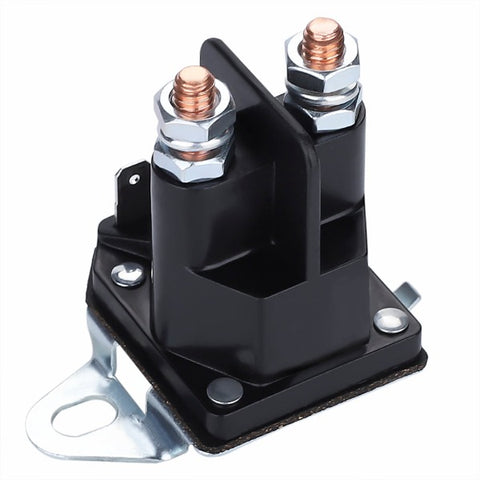

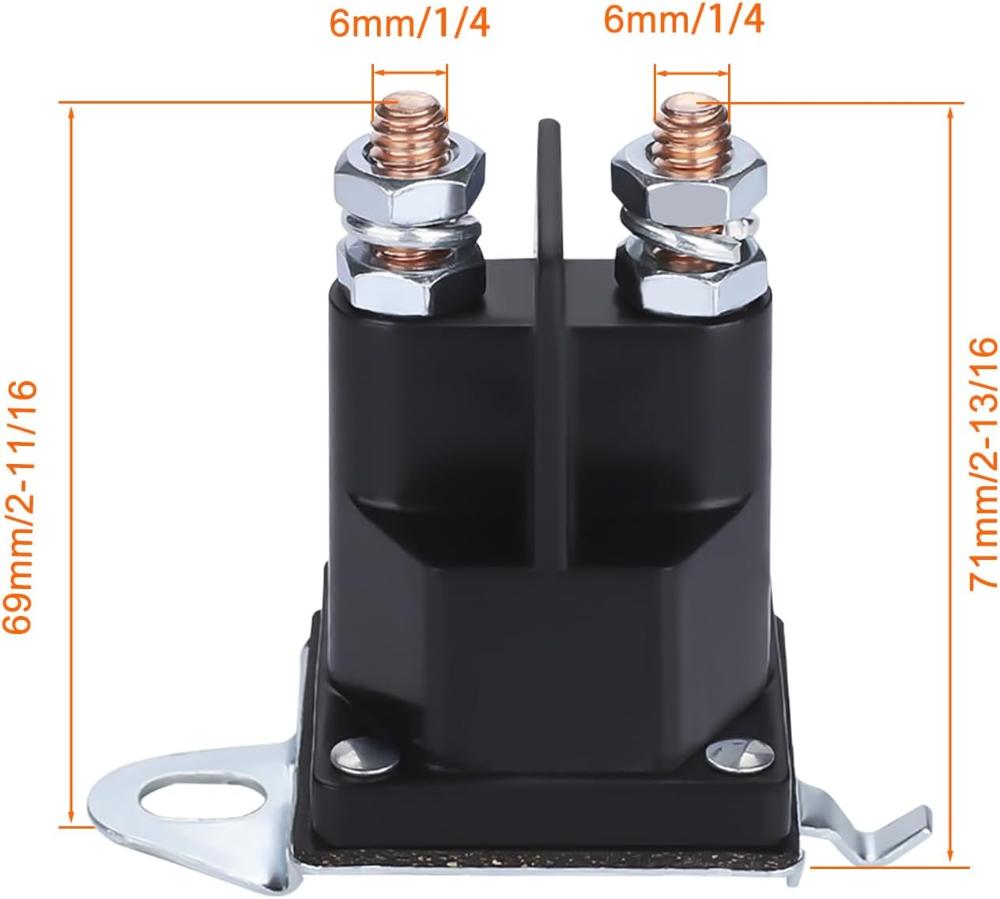

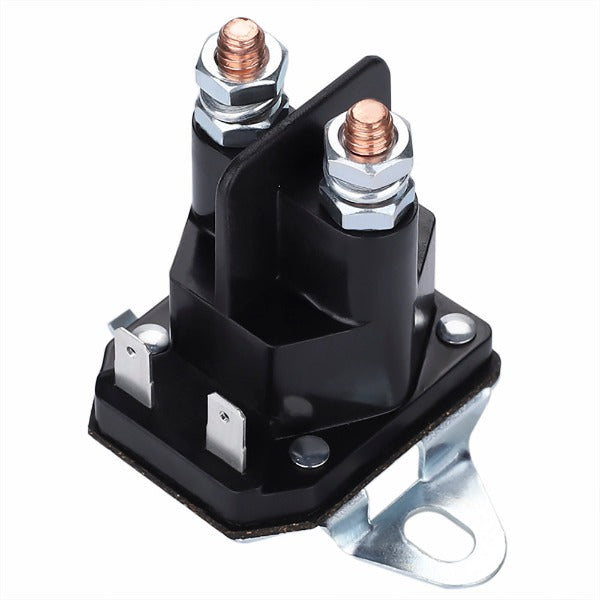

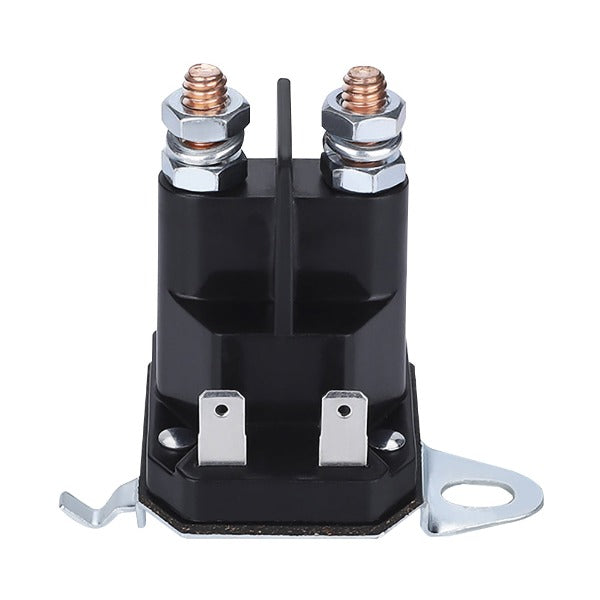

Specifications: 12 Volt Solenoid , 12V 4-Termial , 1/4-20 Studs or 5/16-24 Studs , 1/4 Male Spade Terminal; The housing is made of high quality plastic and the contact material is copper-cadmium alloy to ensure maximum durability.

192507 582042802 582042801 Starter Solenoid Widely Application for AYP, Craftsman, Husq, MTD, Poulan, Trombetta, Ariens, Cub Cadet Riding Mower,Lawn Mower,Lawn Tractors with 4-pole solenoid valve.

The solenoid valve acts similar to a solenoid switch in that it engages and delivers the battery's electrical supply to the engine starter when the ignition switch is turned to the start position.

Over time, it may wear out or become damaged and eventually need to be replaced.

The following tools are required to replace the starter solenoid: socket wrench, screwdriver (flat head or Phillips), wire cutters or strippers, electrical tape or wire connectors, refer to procedure:

1. Disconnect the spark plug wire to prevent accidental starting of the engine.

2.Locate the starter solenoid on the mower. It is usually located near the battery or starter.

3. Use a socket wrench to remove the nut or bolt that holds the solenoid to the mower. Remember these fasteners as they will be needed for replacement.

4. After loosening the solenoid, disconnect the wires connected to it. Make a note of which wire is connected to which terminal on the solenoid.

5. Remove the old solenoid from the mower. Remove the new solenoid and connect the wires to their respective terminals. It may be necessary to use wire connectors or electrical tape to secure the connections.

6. Place the new solenoid in the same position as the old solenoid and secure it with the nut or bolt previously removed.

7. Double check all connections to make sure they are tightened securely. Reconnect the spark plug wires.

8.Start the engine to test the mower and make sure the new solenoid is working properly.
